GL21 Lanen Acoustic Guitar & Ukulele Equipped with an electret cell capable of handling 140dB, it will capture all the dynamics and nuances of your playing. Its great linearity will perfectly respect the timbre and the sound of your instrument. Particular attention has been paid to attaching the microphone to the instrument. Equipped with two clamps specially designed for guitars, ukuleles, mandolins and dobros, the GL21 will allow you to face all situations. For the clamp, we chose to develop two sizes of clip, rather than one single adaptable clip: The first type is for guitars with a thick soundboard or internally strengthened near the sound hole, The second clip is smaller and curved in shape - the mic can be positioned on guitars or ukuleles whose soundboard ribs are near the sound hole towards the neck side. Specifications: Microphone's range : Instrument micsString Kind of microphone : Condenser Brand : Prodipe Directivity : cardioid Impedance : Output: 2.2 KΩ Sensitivity : -47dB ±3dB (0dB=1V/Pa at 1KHz) Width capsule : approx. 1,5 m Pression max. SPL : 140dB Signal - noise : 68dB Frequency response : 50Hz - 20KHz

Prodipe SB21 Lanen Sax & Brass Der Prodipe SB21 Lanen Sax & Brass ist ein hochwertiges, vielseitig einsetzbares Mikrofon, das speziell für Blasinstrumente wie Saxophone, Trompeten, Posaunen sowie für Percussion-Instrumente entwickelt wurde. Dieses Mikrofon richtet sich an Musiker, die bei Live-Auftritten und Studioaufnahmen auf eine präzise und natürliche Klangreproduktion angewiesen sind. Hauptmerkmale: Die Kapsel bietet einen maximalen Schalldruckpegel (SPL) von 140 dB, wodurch selbst lauteste Instrumente verzerrungsfrei aufgenommen werden können. Der Klang bleibt warm und dynamisch. Dank der unidirektionalen (Cardioid) Charakteristik wird die Klangquelle fokussiert erfasst, während unerwünschte Umgebungsgeräusche minimiert werden. Der schwenkbare Schwanenhals erlaubt eine präzise Justierung des Mikrofons, sodass der optimale Klangpunkt direkt erfasst wird. Die mitgelieferte Befestigungsklemme garantiert eine sichere und vibrationsfreie Installation an den Instrumenten. Das Mikrofon verwendet eine Mini-XLR-Verbindung und wird mit einem Adapter für Standard-XLR-Anschlüsse geliefert. Es erfordert eine Phantomspannung von 48 V. Lieferumfang: Das Set umfasst das SB21-Mikrofon, eine Schutzhülle, eine Mikrofonklammer, ein Mini-XLR-zu-XLR-Adapterkabel sowie eine Schaumstoff-Windschutzhaube. Dieses Modell wurde in Zusammenarbeit mit professionellen Musikern entwickelt, darunter Patrick Bourgoin, und verbindet Qualität und Erschwinglichkeit. Mit seinem Preis-Leistungs-Verhältnis ist das SB21 eine Alternative zu teureren Referenzmodellen und macht professionelle Mikrofontechnik für alle zugänglich. Specifications: Microphone's range : Instrument microphonesWind instruments mics Brass instruments mics Accordions and bandoneons mics Battery mics Live mics Studio mics Type of microphone : Condenser mic Brand : Prodipe Directivity : Cardioid Impedance : Output: 2.2 KΩ Sensitivity : -47dB ±3dB (0dB=1V/Pa at 1KHz) Cable length : approx. 1,5 m Pression max. SPL : 140dB Signal - noise : 68dB Frequency response : 50Hz - 20KHz

Prodipe Microphone for CELLO - Back Electret Der Prodipe CL21 Lanen ist ein hochwertiges Kondensatormikrofon speziell für Celli. Mit Nierencharakteristik bietet es präzisen Klang und reduziert Störgeräusche. Es hat eine hohe Schalldrucktoleranz (140 dB), einen Frequenzbereich von 50 Hz bis 20 kHz und wird mit Zubehör wie einem Windschutz, Halterung und Spannungswandler geliefert. Ideal für Studio und Bühne, kann es mit optionaler Phantomspeisung betrieben werden. Specification Microphone's range : Instrument microphones for Cello Kind of microphone : Condenser Brand : Prodipe Directivity : Cardioid Impedance : 2.2kΩ Sensitivity : -47dB ±3dB (0dB=1V/Pa at 1KHz) Cable length : approx. 1,5 m Pression max. SPL : 140dB Signal - noise : 68dB Frequency response : 50Hz - 20KHz

Prodipe Condenser microphone unidirectional Microphone's range : Condenser microphones Studio / Live Instrument microphones Kind of microphone : condenser Brand : Prodipe Power supply : 48V DC phantom (±5V) Directivity : Cardioid Impedance : Output 500„¦±30% (at 1 kHz) Load impedance :‰¥ 1000„¦ Weight : 105 g Sensitivity : -38dB±2dB(0dB=1V/Pa at 1kHz)  Low frequency attenuation : 100Hz/oct 12dB Self noise : ‰¤22dBA (IEC 581-5) Max. SPL input : 134dB (at 1kHZ‰¤1% T.H.D) Signal - noise : 20dB A (IEC 581-5) Frequency response : 30Hz-18kHz

Prodipe Microphone for VIOLIN/ALTO VIOLIN - Cardio. Violins and violas come in various sizes, so they need a fully adaptable mounting system, hence our decision to develop two flexible clamps. The microphone VL21-C is the cardioid version of the VL21 Lanen, equipped with the famous cell 21. With our clamps, our capsule is as close as possible to the sound source, just beneath the strings, tight against the soundboard, ensuring that the recording is richer in harmonics and more dynamic. This microphone can be used in wireless version: to connect to the PRODIPE UHF B210 SOLO or UHF B210 DUO systems (specially adapted for the Lanen 21 capsule impedance). Clamp(s) and XLR adaptor are supplied for wired mic use (48V phantom power supply required). The strengths of VL21-C Lanen Violin & Altos : Excellent natural sound. UHF compatible (with the PRODIPE UHF B210 SOLO or UHF B210 DUO systems - Sold separately). Easy mounting. Lightweight rubber clamp specific to the instrument. Very high level of protection from instrument vibration. Mini XLR to XLR connector adaptor ensures that the mic lead is properly positioned on your instrument (48V phantom power supply required for wired connection). Specification: Microphone's range : Instrument microphones Kind of microphone : Condenser Brand : Prodipe Directivity : cardioid Impedance : Output: 2.2 KΩ Sensitivity : -47dB ±3dB (0dB=1V/Pa at 1KHz) Cable length : approx. 1,5 m Pression max. SPL : 140dB Signal - noise : 68dB Frequency response : 50Hz - 20KHz

PL21 - Salmieri Percussions Prodipe x3 mics set for PERCUSSION - Back Electret Kit of three mics for congas, bongos, djembes, cajons, timbales, rototoms, tambourines, tablas, batas, goblet drums, bendirs, bodhrans, toms, snare drums, tambors, surdos, talking drums, udu, steel drums and many more. Prodipe has perfected an electret capsule that can take up to 140dB. At that level of performance the capsule will preserve the full harmonic envelope and warmth of your instrument. Clamp(s) and XLR adaptor are supplied for wired mic use (48V phantom power supply required). The mic can also convert to a UHF mic by connecting it to the PRODIPE UHF B210 SOLO or UHF B210 DUO systems (specially adapted for the Lanen 21 capsule impedance). The strengths of PL21 Salmiéri Percussion mics Excellent natural sound. Very high acceptable sound pressure level (140 dB). Flexible gooseneck for fast, easy mounting. Lightweight rubber clamp specific to the instrument. Very high level of protection from instrument vibration. Mini XLR to XLR connector adaptor ensures that the mic lead is properly positioned on your instrument (48V phantom power supply required for wired connection). Specification: Microphone's range : Instrument microphones Battery microphones Kind of microphone : condenser Brand : Prodipe Delivered with : hard case Directivity : cardioid Impedance : output: 2.2 KΩ Sensitivity : -47dB ±3dB (0dB=1V/Pa at 1KHz) Cable length : approx. 1,5 m Pression max. SPL : 140dB Signal - noise : 68dB Frequency response : 50Hz-20KHz Curves:

Prodipe x3 Microphones for ACCORDION - Back Electret Microphone's range : Instrument microphones Kind of microphone : Condenser Brand : Prodipe Delivered with : Hard case Directivity : cardioid Impedance : output: 2.2 KΩ Sensitivity : -47dB ±3dB (0dB=1V/Pa at 1KHz) Cable length : approx. 1,5 m Pression max. SPL : 140dB Signal - noise : 68dB Frequency response : 50Hz - 20KHz Curves

SAINT LOUIS Designed with and for harmonica players, this dynamic uni-directional Harmonica Mic with volume and impedance transformer offers you through its thoughtful ergonomics, greater playing comfort and through the choice of its Cell, a warm and dynamic sound. Delivered with an impedance transformer to use your harmonica directly in an amp or in effects pedals. In his role as sound engineer, Ludovic Lanen works with the greatest harmonica players out there. This experience gave rise to the idea of creating a microphone designed especially for them. With the collaboration of the extraordinary Marko Balland, PRODIPE finalized the design of the SAINT LOUIS. Everything was taken into account, from ergonomics to the painstaking search for harmonies to reproduce a warm, dynamic and accurate sound. Particular attention was given to achieving crystal-clear sound, a serious flaw in numerous products on the market. Specification: Microphone's range : Instrument microphoneslive mics Kind of microphone : dynamic Brand : Prodipe Dimensions : 25 x 9.5 x 6 cm Directivity : uni-directional Impedance : 600 Ω ± 30% (at 1KHz) Weight : 492 g Sensitivity : -49.3± 3dB (at 1KHz) Frequency response : 50Hz – 14000Hz

Prodipe x4 Microphones for DRUM KITS - Back Electret

DRM-KD New generation bass drum mic. Microphone for percussion instruments, bass guitar amps, djembes, trombones, tubas and many more. A wide bandwidth dynamic mic designed to handle low frequencies. Able to withstand very high levels of sound pressure and perfect for recording/reproducing the sound of percussion instruments, bass drums, bass guitars, large brass instruments (trombone, tuba) and any extra loud instrument. The look and feel of this mic will bring back fond memories for sound engineers of a certain age. But more than the look, it's the quality of the sound that has improved: full, warm and precise. Unlike a number of today's mics and their artificially scooped frequency response, the DRM-KD restores the complete sound of the bass drum, so all the engineer has left to do is choose the amount of equalization that fits the musical style and arrangement. Specification: Microphone's range : instruments mics Brass instruments mics Battery micsLive micsStudio mics Kind of microphone : Dynamic Brand : Prodipe Directivity : Supercardioid Impedance : Output: 300Ω±30% (at1KHz) Sensitivity : -50±3dB (0dB=1V/Pa at 1kHz) Connectivity : 3 - XLR mâle Frequency response : 30Hz-15kHz Curves

AP-22, Pre- Amp Soundhole Control mit Piezo.

Prodipe Microphone for CONTRABASS - Back Electret Microphone's range : Instrument microphones String instruments mics Live mics Studio mics Kind of microphone : Condenser Brand : Prodipe Directivity : Cardioid Impedance : Output: 2.2 KΩ Sensitivity : -47dB ±3dB (0dB=1V/Pa at 1KHz) Cable length : approx. 1,5 m Pression max. SPL : 140dB Signal - noise : 68dB Frequency response : 50Hz - 20KHz

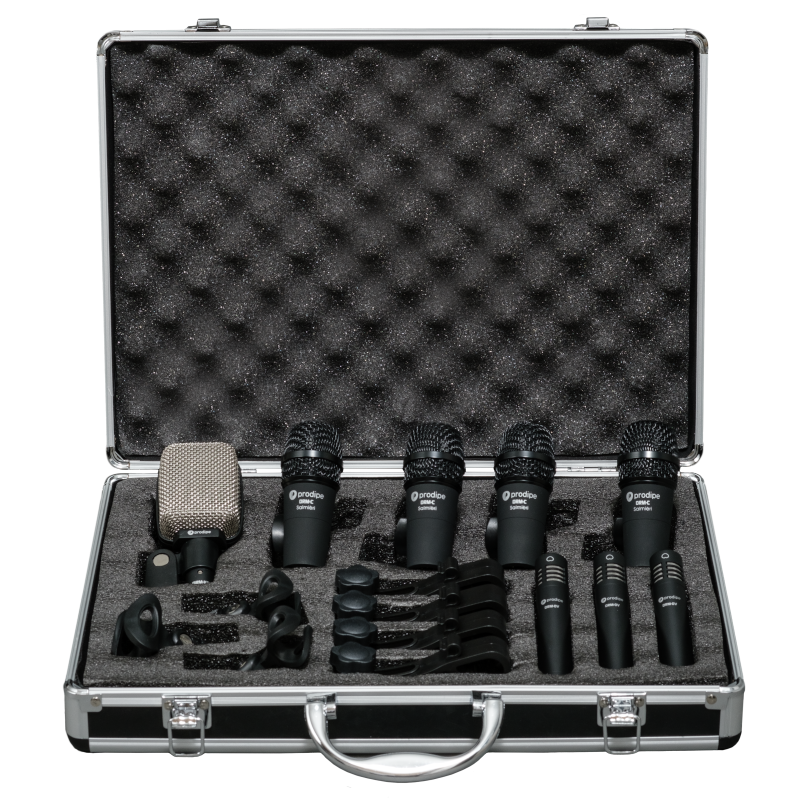

Prodipe 8 x drum mics set with hardcase & DRM-KD for bass drum DRM-C Directivity: Uni-directional Sensitivity: -49dBV/Pa (2.2mV/Pa) Frequency response: 50Hz-15kHz Output impedance: 600Ω ±30% (at 1kHz)  DRM-KD Type : dynamic Frequency response: 30Hz-15kHz Directivity: super cardioid Sensitivity: -50±3dB (0dB=1V/Pa at 1kHz) Output impedance: 300Ω±30% (at 1KHz) Connection: 3 - XLR mâle  DRM-OV Type: back-electret 16 ø Directivity: cardioïd Frequency response: 30Hz - 18 kHz Sensibility: -38dB±3dB (0dB=1V/Pa at 1kHz) Output impedance: 100±30% (at 1 kHz) Noise: 20dB A Pression max SPL : 135dB (at 1kHz‰¤1% T.H.D) S/N Ratio: 74dB Phantom power: 9V-52V

Connector for Micros Prodipe AL 21 Cable adapter Prodipe AL21 ™¦ 2 x Mini XLR ™¦ 1 x Mini XLR
